RaceCapture Track MK2

RaceCapture Track MK2

from 299.00

Compact, plug and play with professional features

About the size of a deck of playing cards, RaceCapture/Track MK2 packs professional features into a compact and lightweight form factor.  Plus, the plug and play OBDII installation makes it super easy to get going!

RaceCapture App: runs everywhere!

RaceCapture/Track includes easy to use RaceCapture App, which provides a real-time dashboard and access to all setup features – right at the touch of your finger.

The included RaceCapture app runs on nearly every device – Android, iOS, Microsoft Windows, and Apple OSX.

You can even run it on a Raspberry Pi for that ultimate car hacking experience!

Multi-screen, customizable dashboard

Use your Android or iOS device as a powerful dashboard with ultra fast sensor response!

Powerful predictive lap timer with real-time performance feedback

It’s like a racing coach right on your dash! The predictive lap timer gives instant visual feedback so you know where you’re falling behind compared to your best lap.

Customizable alarms and warnings help you keep tabs on your engine

Customize gauge colors based on warning conditions and pop-up alerts if things go critical!

Advanced visualizations to get the most out of your connected sensors

What good are a ton of sensor channels without the ability to visualize them? If you have the sensors connected to RaceCapture you can vibrantly visualize data such as tire temperatures, brake temperatures, and more!

Live stream and share your racing to Podium

Live-stream your racing to Podium, the social network where you can do real-time analysis on engine, chassis, and driver performance. Share and compare your laps with crew, friends, race coaches, and fans around the world.

Powerful, instant analysis – no need to transfer files

Your data streams in real-time to Podium where it can be reviewed by race coaches, monitored by your pit crew, or broadcast to fans around the world, right now! Uncover what will make a difference in your driving or car performance during your race or practice, while still on track. No files to to transfer and no data cables to connect!

Powerful time-gap analysis

Compare laps in real time and see where on track you’re falling behind or gaining time – race coaches will love the ability to tune the nut behind the wheel while the driver is on track – no need for off-line “data download” classrooms!

Compare your laps between friends and sessions

Regardless of the system your friends are using, you’ll be able to compare lap times, sensors, GPS position, driving line and more using the powerful tools available on Podium – across many laps or just one:

Over 100 sensor channels

Don’t let the small size fool you: RaceCapture/Track packs the ability to map over 100 sensor channels across engine, chassis, driver, GPS, and accelerometer/gyro sensors!

Direct CAN bus connectivity connects any system

Far beyond your ordinary OBDII connection. Map up to 100 direct CAN channels from any compatible ECU or sensor network – even aftermarket ECUs and sensor networks!

Factory OBDII support

Map up to 20 channels of data from any OBDII compatible vehicle – even 1996-2007 models with the optional legacy OBDII adapter!

Dual CAN bus networks

Normally only available in high end data systems, RaceCapture/Track offers two CAN bus networks for maximum versatility.

You can connect the first CAN bus to your ECU, and the second to a sensor network, such as a tire temperature, analog, EGT, driver health sensors and more. The possibilities are nearly limitless!

High performance GPS with external antenna

Normally reserved for professional motorsport systems, RaceCapture/Track has a high performance GPS system with an external magnetic mount antenna. This allows optimal mounting for best GPS accuracy, improving track mapping and lap time precision.

Stealth Installation

Install RaceCapture/Track in nearly any location you can fit it- great for stealth permanent installation!

Accelerometer + Gyro: Built in

No need to rely on your phone’s sensors! RaceCapture/Track features a dedicated high performance 6 axis accelerometer and gyro – calibrate it once and you’re good to go!

Bluetooth + WiFi connectivity

Dual Bluetooth + WiFi wireless connectivity gives the best connectivity option for the mobile device you’re running.

Connect your iOS device via WiFi, or enjoy both Bluetooth and WiFi for your Android devices.  The high speed wireless link is super responsive!

GoPro Camera control

Got a GoPro Hero 2/3/4/5 ? You can automatically start / stop your camera via the GoPro’s WiFi connection based on a speed trigger or other sensor. It’s super powerful and lets you create precisely synchronized data + video logs.

Easily export to RaceRender or Dashware

RaceCapture exports plain CSV data that lets you easily export to your favorite overlay software. Use the GoPro camera control for pre-synchronized video + data files, making rendering a snap!

Check out John Freund’s fast lap from Hyperfest 2018!

What’s in the Box

  • RaceCapture/Track MK2

  • OBDII cable (Legacy OBDII adapter when Legacy OBDII option is selected)

  • External GPS antenna

  • USB Cable

  • Quick Start Guide

  • Free RaceCapture app (download from iTunes, Google Play, or Amazon App store)

Full Specifications

Analog InputsChannelsBattery Voltage (Internally connected) (0-20v)CAN BusCAN Channels2CAN baud rate125K, 250K, 500K, 1M BaudCAN filters14 per channelProtocol SupportOBDII PID, custom CAN mappingCAN BusCAN 2.0 compatible, 1M baudCAN terminationInternal jumper controlled; termination disabled by defaultCAN channels supported100Cellular TelemetryVia RaceCapture App3G/4G depending on mobile device’s capability (phone) or connected tablet + hotspotMaximum Sample Rate10Hz (1/5/10Hz supported)GPSGPS Engine1/5/10/25/50Hz nativeGPS AntennaExternal / Magnetic roof mountWireless (WiFI)WiFi802.11bgnWiFi ModesAccess Point, InfrastructureMaximum Sample Rate (dashboard link)50HzWireless (Bluetooth)Bluetooth (high speed)2.0/2.1 EDRMaximum Sample Rate (dashboard link)50HzGeneral FeaturesMaximum Sample Rate50HzPredictive Lap TimingBuilt-inTrack MappingCircuit and point-pointTrack mapsUnlimited – update from cloudSectors per track20AnalysisIncluded in the RaceCapture App + podium.liveExport data formatPlain CSV (RaceRender and Dashware compatible)Scripting / CustomizationReal-time virtual (math) channels / custom channel mappingVia on-board Lua scriptingVirtual Channels100PhysicalDimensions85 x 85 x 36mm (3.35 x 3.35 x 1.41in)Temperature range-40 to 85cEnvironmentalIP50 ratedWeight170g (6 oz)PhysicalRJ45 Connector, 8 pins provides power + OBDII / CAN connectivity
SMA for external GPS antennaPower Consumption (max)1.6W

Notice

Android, Microsoft, Apple, Amazon and GoPro are trademarks or registered trademarks of their respective holders. Any references to these trademarks does not imply any affiliation or endorsement.

Legacy OBDII Adapter:
Cable:
Quantity:
Add To Cart

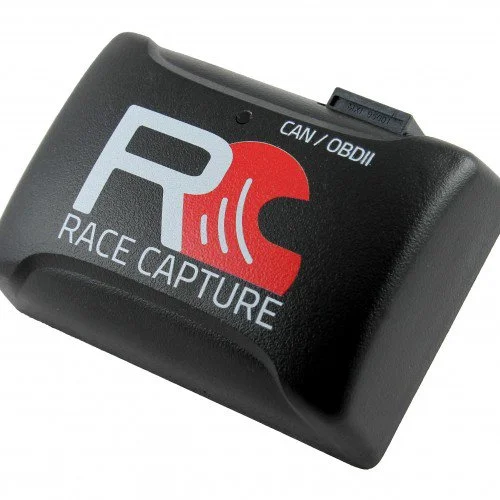

Predictive lap times and more with the RaceCapture app

The free Race Capture app provides a fast, real-time view of your race car’s data, including predictive lap times, sensor alerts and a customizable dashboard. Try it today: Download from the Google Play Store or the Amazon App Store!

Log

  • Predictive lap timing with the built-in high performance GPS
  • 3 axis accelerometer to measure G-Forces in 3D
  • 3 axis Gyro to measure Yaw, Pitch and Roll
  • CAN bus or OBDII data – connect directly to 2008+ CAN/OBD-II ports or older cars with the legacy OBDII adapter
  • All in a tiny, easy to install case

What’s in the Box

  • RaceCapture
  • OBDII cable

RaceCapture requires a phone or tablet for displaying and recording data.

Options

Legacy OBDII Adapter

Got a car made before 2008? No problem! Select the ‘Include Legacy OBDII Adapter’ option to enable RaceCapture to connect to your car and record additional data like engine temperature and more! (Sensor support varies by make and model)

Specifications

Inertial Motion Unit

Accelerometer Channels3 (X/Y/Z) (2G, 4G capable)

Gyro3 (Yaw/Pitch/Roll) (1000 degrees/sec)

Magnetic compass1 (Bearing) (device capable of 3) (compass available in 2.9.x firmware)

GPS

GPS TypeInternal active antenna

GPS Sample rates5/10/25/50Hz capable (10Hz recommended, 50Hz requires optimal conditions)

GPS accuracy2.5M CEP

Configuration Capacity

Auto-detect track databaseunlimited

Sectors per track20

OBDII Channel support10

CAN Channel support10

Accelerometer/Gyro channels6

GPS / Lap timing channels10

Analog Channels1 (Battery Voltage)

Physical

Dimensions3.5″ (w) x 2″ (h) x 1.5″ (tall) / 9x5x3.8 m(est)

Weight5oz / 141gm (est)
