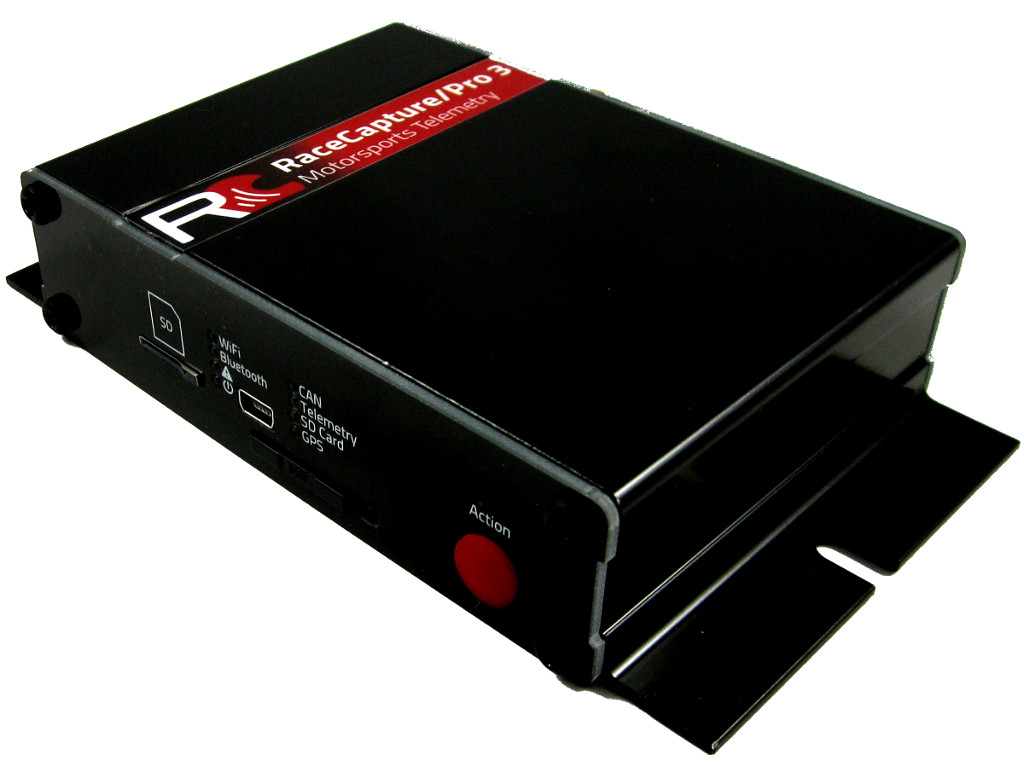

RaceCapture Pro MK3

RaceCapture Pro MK3

from 599.00

Next generation of data, telemetry, and control

Your time on track matters and you want to maximize every minute and dollar toward tuning the engine, honing your racecraft, or finding that extra edge over your competition. As motorsports evolves, so should motorsports telemetry technology: more real-time, extending your reach to the people who matter. Showing you what you need while you’re still at the track, so you can make changes and adapt now, not later. Autosport Labs’ new RaceCapture/Pro MK3 brings flexible data acquisition, predictive lap timing, real-time telemetry, and control to your race car.


Add To Cart

Live streaming to Podium

Live-stream your racing to Podium, where you can perform real-time analysis on engine, chassis and driver performance. Share and compare your laps with friends, colleagues, and race coaches around the world. Learn more at https://podium.live

RaceCapture App – included

Create your own dashboard and feed your sensor data to the gauges you customize.  Show predictive lap times with real-time +/- delta feedback vs. your best lap, and instantly review your laps right as you come off track. It’s all built-in to the RaceCapture app with user-friendly, touch optimized experience, and it’s easy to get set up and going!

The RaceCapture app works on the devices you love – with Android, iOS, Windows and OSX support. Monitor critical engine data in real time with your iPad or Android tablet standing right at your race car, or run it on a big screen with your Windows or OSX machine to analyze your lap data.

Visualizations for specialty sensors

Got special sensors, like tire and brake temperature? We have a dedicated view just for that.

Built in analysis features

Instantly review your laps and runs with the built-in, touch-optimized analysis capabilities – right on your Android or iOS device!

Wireless Everything

WiFi and Bluetooth 2.0 are integrated onboard for connectivity to the RaceCapture app on Android and iOS.

Optional 4G Cellular Telemetry

The optional on-board, high performance, worldwide-capable 4g LTE cellular module provides real-time streaming of telemetry data to the Podium cloud platform. You can monitor engine sensor data, chassis data or perform real-time driver coaching on a lap-by-lap basis – to the pits or anywhere in the world. Visit http://podium.live for details.

High performance GPS

An internal GPS module provides native GPS sample rates at 1/5/10/25/50 Hz. Position, speed, altitude, distance and GPS statistics are included.

Predictive Lap Timing

100’s of tracks available worldwide combined with on-board predictive lap timing provides real-time feedback to the driver. With the included interactive track map builder you can be assured you can roll up to your favorite track and get the lap times and statistics you need.

6 Axis Accelerometer + Gyro

Get 3-axis G-force plus Yaw / Pitch and Roll using the on-board high performance 6 axis Inertial Measurement Unit (IMU) – use it to analyze peak cornering G’s, or detect oversteer / understeer situations.

Dual CAN bus

Two CAN 2.0 compliant channels are available, providing baud rates up to 1MBPS. CAN bus data can be mapped to channels using built in OBD-II, direct CAN channel mapping, or custom logic mapping via Lua scripting.   Both CAN channels are available on the RJ45 bus and the molex connector.

Software controlled CAN termination

A RaceCapture exclusive: with a flip of a switch in the RaceCapture App you can enable or disable built-in CAN termination – no external resistors to add, switches to flip, or jumpers to set.

Powerful ECU integration

In addition to CAN OBDII support, RaceCapture/Pro MK3 also supports mapping of channels from CAN data streams, allowing direct integration with CAN enabled ECU such as Motec, Link, AEM, Megasquirt – including direct integration to OEM-specific CAN networks, such as found on the BMW E46.  You’ll be able to map data from two different CAN bus channels for maximum flexibility.

Analog, Digital, and GPIO output capabilities

8 external 0-5v analog inputs with 12 bit ADC, 4 channel timers for measuring RPM or frequency and 3 general purpose I/O ports for low speed inputs or controlling outputs up to 1A. (open drain)

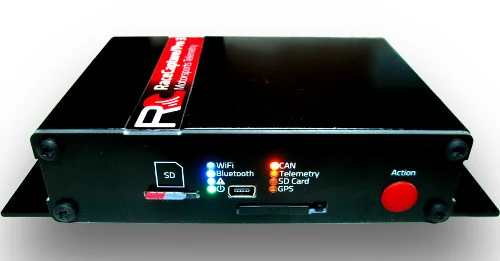

Onboard SD card logging

A micro-SD card slot is provided for on-board data acquisition file recording. 32GB SDHC cards are supported.

USB Connectivity

A standard USB interface for direct connection for configuration, telemetry monitoring, and firmware upgrades.

GoPro™  Camera Control

Use the built-in WiFi capabilities to control a WiFi enabled GoPro camera using a speed-based trigger, allowing precise synchronization between data and video.

Extensibility through Lua Scripting

Design your own custom behaviors using the simple on-board Lua scripting. Trigger a fan or pump based on sensor readings, activate warning lights, create real-time calculated channels, communicate with ECUs and other devices using CAN and RS232 serial communications. The sky’s the limit!

Convenient wiring and connections

A single molex plug, antenna, and cellular connections all on one end of the unit makes for a clean installation.

Included in the package

  • RaceCapture/Pro MK3

  • Wiring harness with 12” flying leads

  • External magnetic mount GPS antenna

  • Roof mount GSM antenna (if optioned with 3.5G cellular)

  • USB cable

  • Quick start guide


RaceCapture/Pro MK3 Product Brief



Analog Inputs
Channels9 (8 external + 1 internal battery/supply voltage)
Voltage range0-5v
Input impedance greater than 1M ohm
Voltage protection 400v (intermittent)
ADC precision12 bit
Maximum sample rate 1000Hz
MappingRaw / linear formula / interpolated map
Digital I/O
Channels 3
Output mode type Open Drain
Output current capacity 1A, inductively clamped
Input mode voltage range 0-12v
Input voltage protection 0-40v
Maximum sample rate1000Hz
Timer inputs (RPM/Frequency)
Voltage protection 400v (intermittent)
Maximum sample rate 1000Hz
Mapping RPM, Frequency
Voltage reference
Output Voltage / Capacity5v / 500m
CAN Channels2
CAN baud rate125K, 250K, 500K, 1M Baud
CAN filters14 per channel
Protocol SupportOBDII PID, custom CAN mapping
CAN BusCAN 2.0 compatible, 1M baud
CAN terminationSoftware controlled
Aux SerialRS232
Max Baud Rate230400
Cellular Telemetry (Optional)
Cellular3.5G GSM worldwide compatible
Maximum Sample Rate10Hz
WiFi ModesAccess Point, Infrastructure
BluetoothBluetooth 2.0
Maximum Sample Rate50Hz (Bluetooth and WiFi)
GPS TypeExternal active antenna
Sample Rates supported1 / 5 / 10 / 25 / 50Hz
GPS accuracy2.5M CEP
Inertial Motion Unit
Accelerometer Channels3 (X/Y/Z) (2G, 4G capable)
Gyro Channels3 (Yaw/Pitch/Roll) (1000 degrees/sec)
Micro SDUp to 32GB (SDHC)
CAN bus direct mapping30 direct CAN mapping channels

Channel Support200
Predictive Lap TimingBuilt-in
Track MappingCircut and point-point
Track maps200 built in for autonomous auto-detection;
unlimited via RaceCapture app
with interactive track map builder
Sectors per track20
AnalysisIncluded in the RaceCapture App
Export data formatPlain CSV (RaceRender compatible)

Dimensions150 x 85 x 30mm (5.9 x 3.35 x 1.18in)
Temperature range-40 to 85c
EnvironmentalIP50 rated
Weight255g (12 oz)
PhysicalMolex Connector, 24 pins
SMA for external GPS antenna
SMA for cellular module
Power Consumption (max)Main System: 0.6W
With Wireless: 1.6W
With Cellular Telemetry: 8.6W
With Cellular Telemetry and Wireless active: 9.6W
