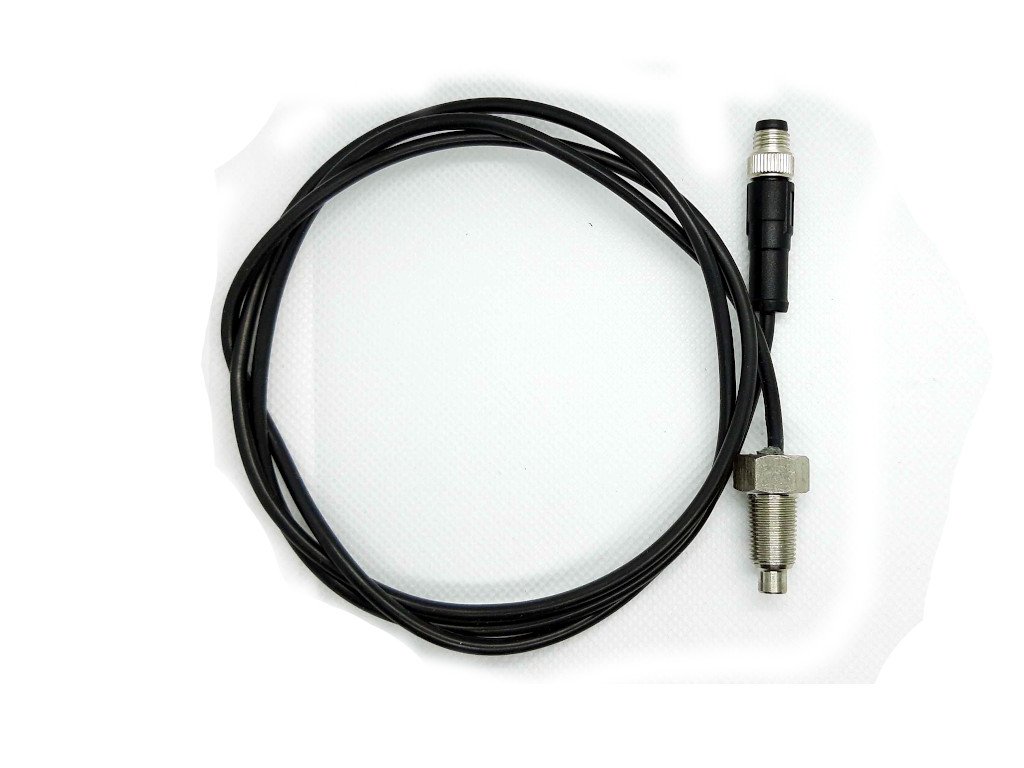

Linear temperature sensor with plug and play harness
$74.95
The Autosport Labs Linear Temperature Sensor offers a linear response of 10mv/C for easy calibration with a simple conversion formula.
Only ground, 5v, and output connections are required, with no pullup resistor needed – similar to other active sensors. The sensor is suitable for fluids such as oil, coolant and water.
Provided with M8 plug and play harness connector.
Quantity:
Mechanical
1 Meter cable length
1/8″ NPT fitting
Body: Stainless Steel
13mm (1/2″) hex head
Electrical
Voltage supply: 3-5V
Pull-up resistor: None (Active element)
Operational temperature range: -40 to 150C
Calibration: Linear response 10mv/C; 0.5V at 0 degrees C
M8 Pinout:
Pin 4 : signal
Pin 1: Ground
Pin 3: 5V
Wiring color codes:
Green: Ground
Red: 3-5V
Yellow: Signal Output
