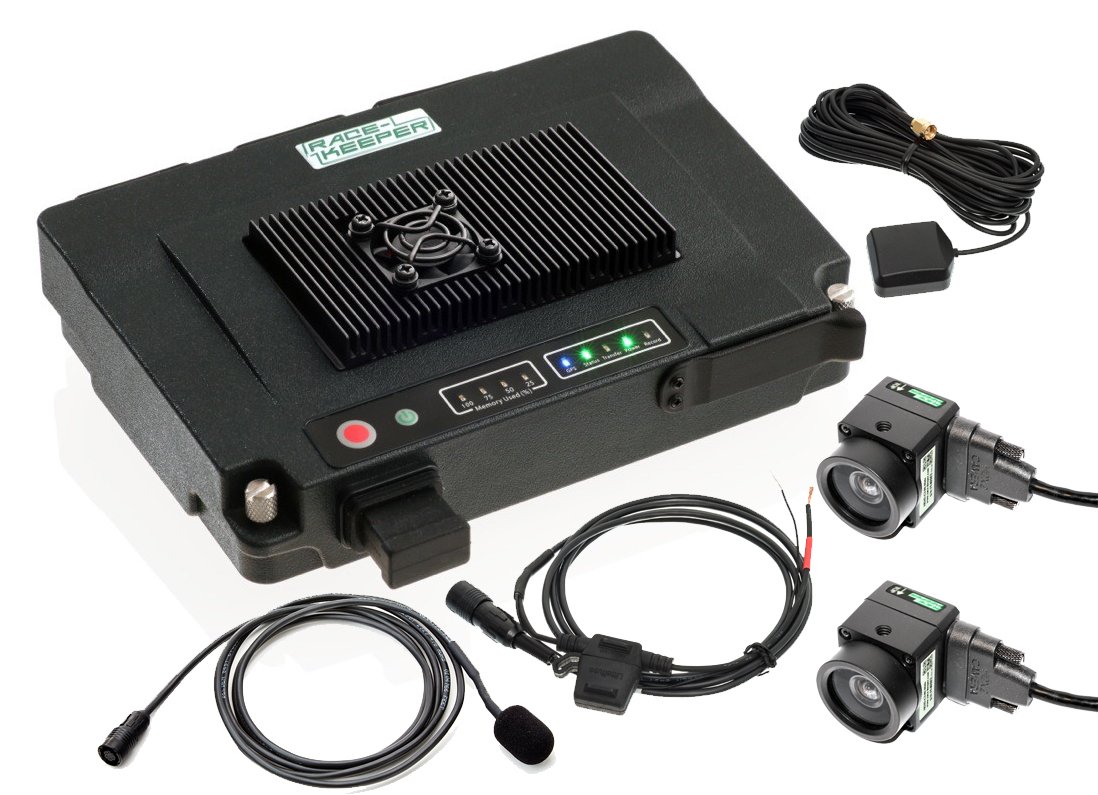

HDX2 Multi-Camera 1080p HD Video-Logger
The Race-Keeper HDX2 is one of the highest specification video-logging systems on the market. It is supplied with 1080p HD cameras, 20Hz GPS and OBDII/ECU connection capabilities.
The Two Camera version of HDX2 is the default product for most club-pro level racers. When the 1080p HD cameras outstanding picture quality is combined with the speed, trackmap and laptime data derived from the 20Hz GPS signal and G force data from the systems built-in accelerometer, you end up with an extremely powerful driver development tool that will show you all you need to know about driving lines, braking points, turn in points, apex clipping and more.
Most professionally built race cars have custom ECU’s or Dash Displays that are capable to supplying the data it captures to additional devices using CAN communication, meaning you will not need to double up on sensors in order to measure the same parameters. The additional driver data channels you would want to capture via CAN would include:
Speed
RPM
Throttle
Steering Angle
Gear Position
Brake Pressure
HDX2 is CAN enabled as standard and will support connection to a number of standard ECU’s manufactured by Bosch, Motec, Pectel and MBE. It is also possible for custom CAN protocols to be created so if you are interested in adding these extra data channels to your system but you are running an ECU that is not currently supported, you can import .dbc files straight into Comparo HD for use with HDX2.
The ECU’s on all modern road cars, and therefore some racing cars, transmit signals using the “On-Board Diagnostics” communication standard OBDII. By connecting your Race-Keeper HDX2 to the OBDII on your car, you will gain some data channels in addition to those from GPS and the built-in accelerometers, the main ones being Speed, Throttle and RPM.
These additional data channels will allow you to further analyse your on track performance and see where improvements can be made.
Two years in development, Race-Keeper HDX2 combines the power of true 1080p high-definition multi-camera video with automatically synchronized data in one easy to use system. Race-Keeper HDX2’s video is comprised of two full resolution, 1080p, video streams for unmatched video capability and performance. Race-Keeper HDX2’s logger combines a high performance GPS, accelerometer and gyro with vehicle inputs to provide a full spectrum of data for comprehensive analysis. As with all Race-Keeper systems, video and data are always automatically synchronized for fast and easy review using Race-Keeper Comparo HD analysis software.
Say Goodbye to Jello: Video from most onboard HD cameras have distortion caused by vibration, often referred to as a ‘jello effect’. Race-Keeper HDX2’s 1080p cameras have an onboard image stabilization algorithm which reduces the distortion to give a rock solid, crystal clear, distortion free image.
Fully Automated: Like all Race-Keeper systems, HDX2 is fully automated. Unlike other HD systems, HDX2 gives you the power to never fiddle again with separate HD cameras, batteries and SD cards or starting and stopping individual cameras. Race-Keeper HDX2 is fully automated and can be programmed to automatically power up when the car is started, start recording when you leave pit lane and stop when you shut the car off.
Quick and Easy: The video and data is recorded to a single removable SD Card or USB thumb drive for fast & easy review. Using Comparo HD, Race-Keepers side-by-side analysis software, simply import & open the file and you’re done.

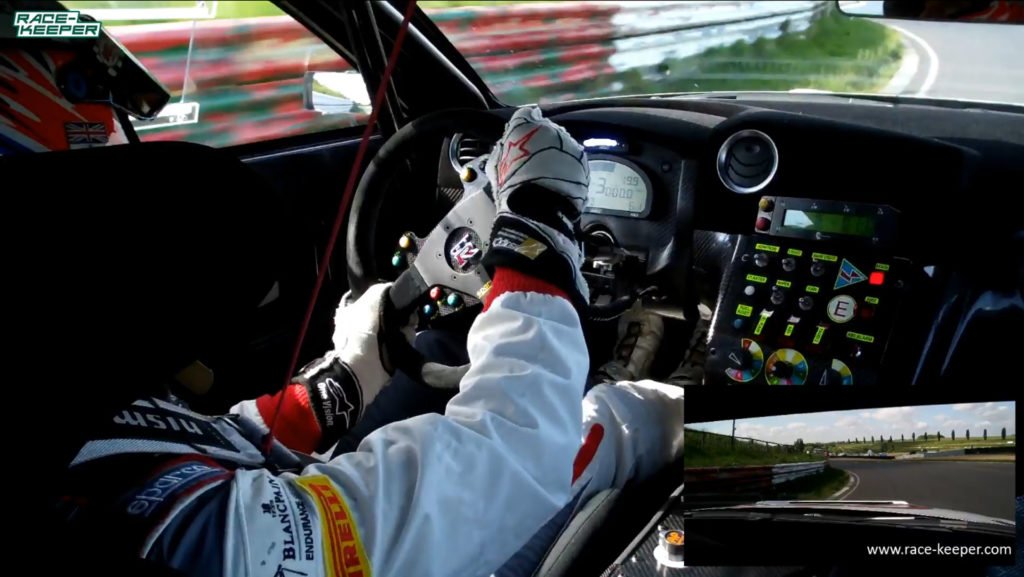

Dual Stream: Race-Keeper HDX2 features Race-Keeper’s unique Dual Stream technology. Each of Race-Keeper HDX2’s two, 1080p, HD cameras record a full size, 1080p, video stream. Each of the two streams play back together in Race-Keeper Comparo for an uncompromised view of the track, the driver or anywhere else you may want to point a camera.
HDX2 Specs
1080p/30 fps or 720p/60fps for brilliant, broadcast quality video
True Dual Stream HD video for comprehensive video coverage (track, cockpit, rear)
Image Stabilization for rock solid image quality
MPEG-4 video file plays in all popular media players
20 Hz GPS for accurate lap times, splits and track mapping
3-axis internal accel for lateral, inline and vertical G data
Internal gyro for roll, pitch and yaw data
Three (3) USB ports for easy connection to additional inputs/outputs
1GB Ethernet port for high speed network connection
Two (2) CAN ports for logging vehicle CAN data and for other CAN devices
Records to removable SD, USB or USB3 for fast and easy off-loading
Small, lightweight, rugged, waterproof construction for harsh environments
Sealed, locking connectors to ensure reliable operation
Waterproof Bullet Cameras with ¼-20 mounting lugs for easy internal or external mounting
HDMI video output for live display, playback and easy camera setup
Programmable power-on, start/stop recording for truly hands off operation
