RaceCapture/Track MK3
You’re a driver with wants and needs. You want faster lap times. You need to keep an eye on your gauges. You want something easy to use and understand. You need powerful data acquisition. RaceCapture/Track MK3 has you covered!

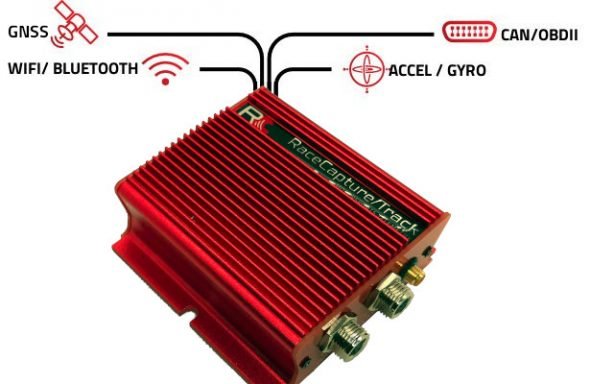

Rugged, plug and play, and packed with professional features
RaceCapture/Track MK3 packs the features you expect from a powerful data acquisition system. Plug and Play OBDII installation and direct CAN bus integration to aftermarket ECUs and sensor networks make it super easy to get going, yet powerful enough to grow!
Over 100 sensor channels
Don’t let the small size fool you: RaceCapture/Track packs the ability to map over 100 sensor channels across engine, chassis, driver, GPS, and accelerometer/gyro sensors!
You can’t call it GPS anymore. Latest tech quad band GNSS delivers outstanding performance
Call it Global navigation satellite system (GNSS)!
Not only does RaceCapture/Track MK3 support GPS, but also GLONASS, BeiDou, and Galileo. A total of 4 global satellite constellations delivers incredible positioning performance; often locked on to 20+ satellites! External magnetic antenna mount provides the best possible reception.
Plug and play OBDII + Dual CAN bus networks for aftermarket ECU support
Far beyond your ordinary OBDII connection. Map up to 100 direct CAN channels from any compatible ECU or sensor network – even aftermarket ECUs and sensor networks!
Built in high performance accelerometer + gyro
No need to rely on your phone’s sensors! RaceCapture/Track features a dedicated high performance 6 axis accelerometer and gyro – calibrate it once and you’re good to go!

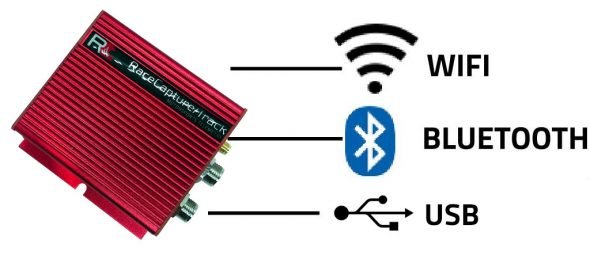

USB / Bluetooth / WiFi connectivity
Connect your iOS device via WiFi, or enjoy both Bluetooth, WiFi, or USB for your Android devices. The high speed wireless link is super responsive!

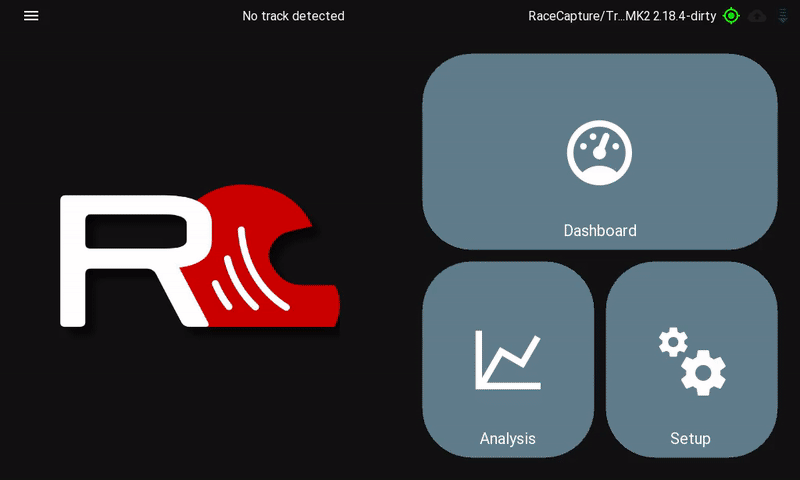

RaceCapture App – powerful dashboard, analysis, and more
RaceCapture/Track includes easy to use RaceCapture App, which provides a real-time dashboard, analysis, and and access to all setup features – right at the touch of your finger.

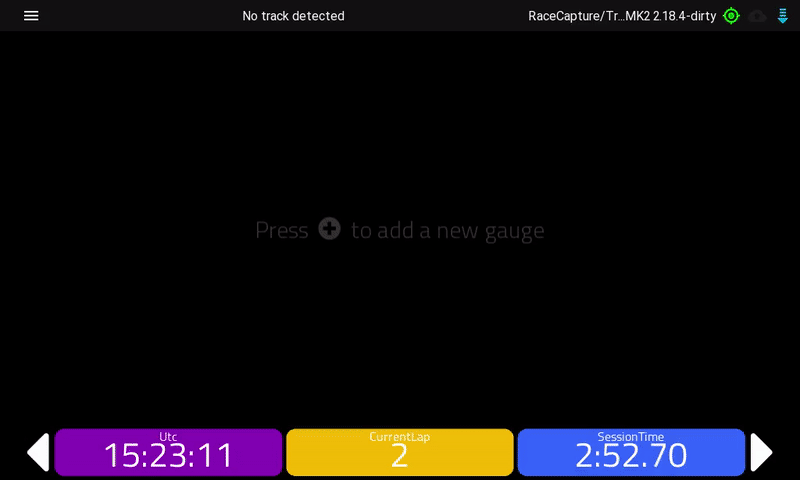

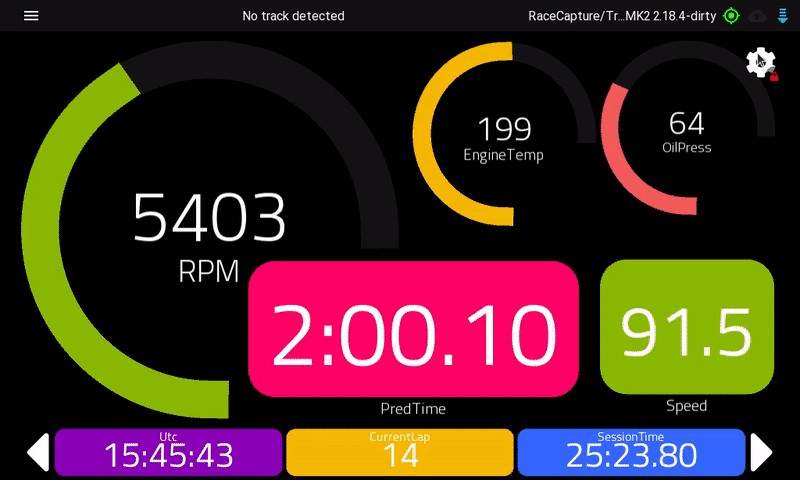

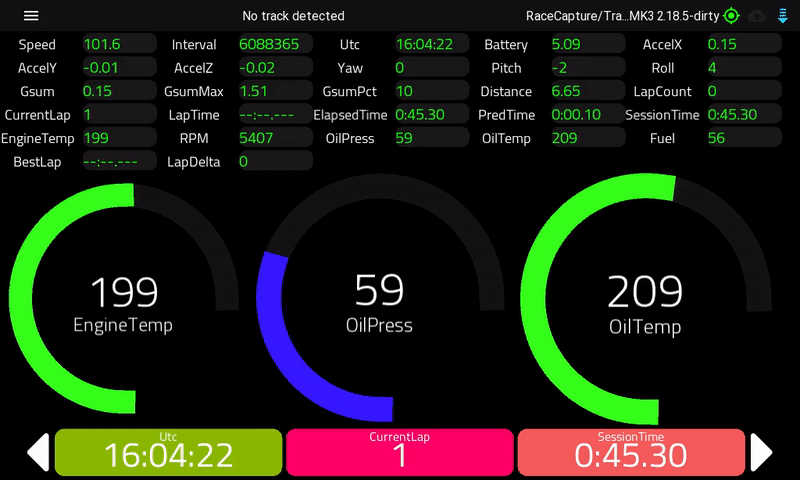

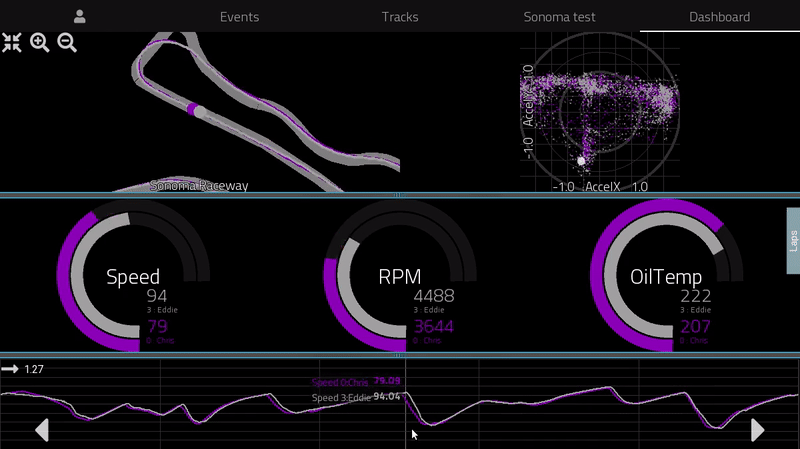

Multi-screen, drag and drop customizable dashboard
Have fun designing the perfect dashboard for your race car with a drag and drop designer. Easily switch between multiple screens – the possibilities are endless!
Share and import designs from other racers
You can browse and import dashboards created by other racers. Use them as-is or customize them to suit your needs. You can even rate dashboards you like!
You can save and share your dashboard designs – even design them on your desktop/laptop and then load them on your in-car dashboard, for the ultimate convenience.

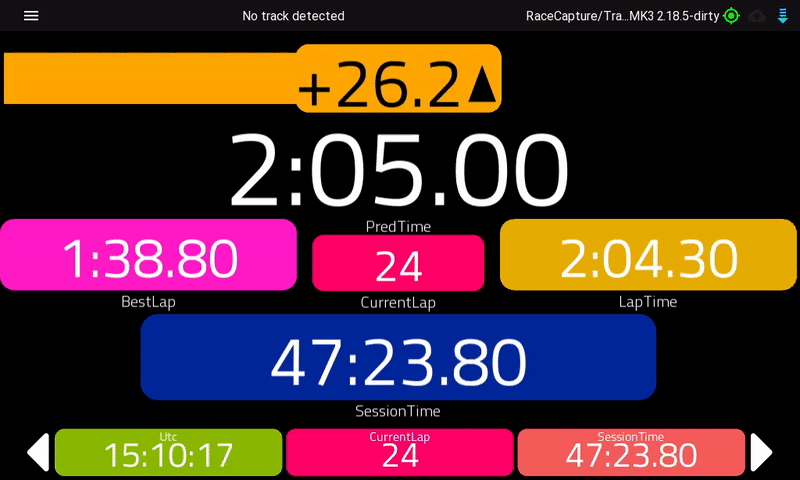

A racing coach right on your dash! Powerful predictive lap timer with real-time performance feedback
The predictive lap timer gives instant visual feedback so you know where you’re falling behind compared to your best lap – or it you’re beating it!

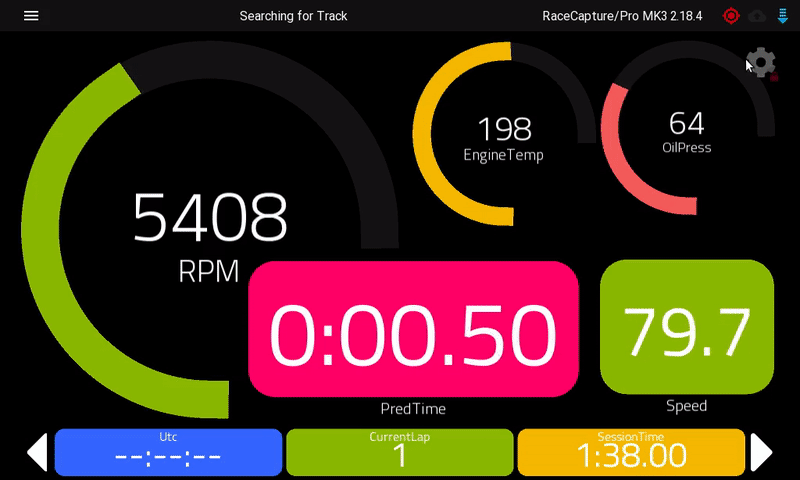

Customizable alarms and warnings help you keep tabs on your engine
Customize gauge colors based on warning conditions and pop-up alerts if things go critical!

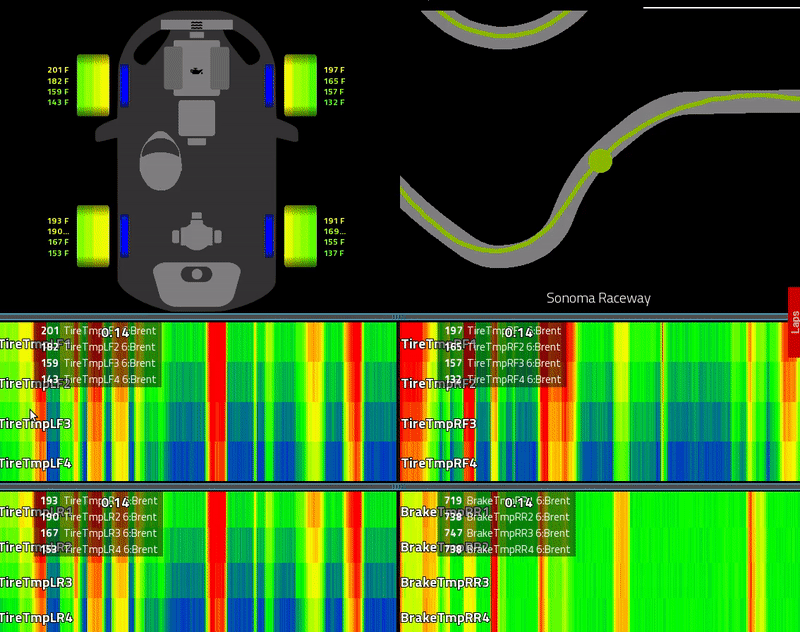

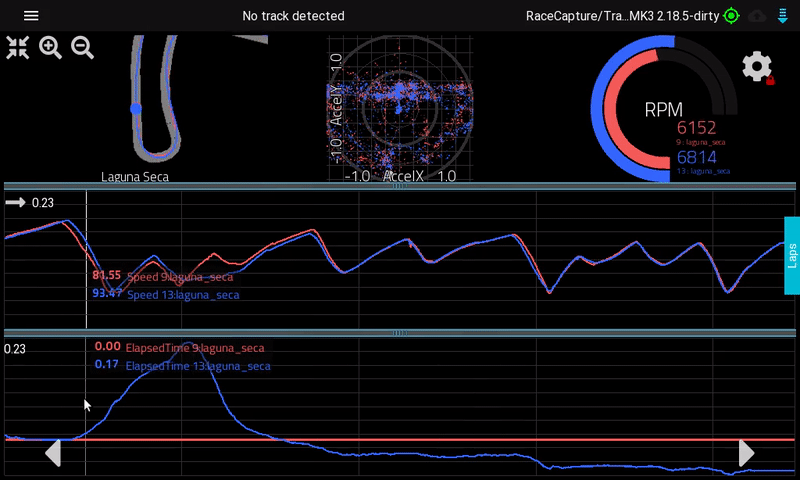

Easy to use analysis capabilities
What good are a ton of sensor channels without the ability to visualize them? If you have the sensors connected to RaceCapture you can vibrantly visualize data such as tire temperatures, brake temperatures, and more
Streamlined, touch oriented setup
Configure your settings on any device – right from your dashboard, or from the convenience of your desktop / laptop.

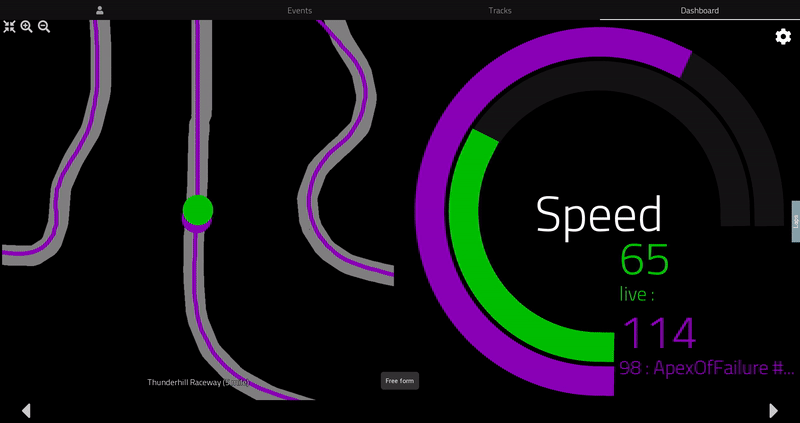

Live stream and share your racing to Podium
Live-stream your racing to Podium, the social network where you can do real-time analysis on engine, chassis, and driver performance. Share and compare your laps with crew, friends, race coaches, and fans around the world.
Powerful, instant analysis – no need to transfer files
Your data streams in real-time to Podium where it can be reviewed by race coaches, monitored by your pit crew, or broadcast to fans around the world, right now! Uncover what will make a difference in your driving or car performance during your race or practice, while still on track. No files to to transfer and no data cables to connect!
Powerful time-gap analysis
Compare laps in real time and see where on track you’re falling behind or gaining time – race coaches will love the ability to tune the nut behind the wheel while the driver is on track – no need for off-line “data download” classrooms!
Compare your laps between friends and sessions
Regardless of the system your friends are using, you’ll be able to compare lap times, sensors, GPS position, driving line and more using the powerful tools available on Podium – across many laps or just one:
GoPro Camera control
Got a GoPro Hero 2/3/4/5 ? You can automatically start / stop your camera via the GoPro’s WiFi connection based on a speed trigger or other sensor. It’s super powerful and lets you create precisely synchronized data + video logs.
Easily export to RaceRender or Dashware
RaceCapture exports plain CSV data that lets you easily export to your favorite overlay software. Use the GoPro camera control for pre-synchronized video + data files, making rendering a snap!
What’s in the Box
RaceCapture/Track MK2
OBDII cable (Legacy OBDII adapter when Legacy OBDII option is selected)
External GPS antenna
USB Cable
Quick Start Guide
Free RaceCapture app
Full Specifications
Analog Inputs
Channels Battery Voltage (Internally connected) (0-20v)
CAN Bus
CAN Channels 2
CAN baud rate 125K, 250K, 500K, 1M Baud
Protocol Support OBDII PID, custom CAN mapping
CAN Bus CAN 2.0 compatible, 1M baud
CAN termination Internal jumper controlled; termination disabled by default
CAN channels supported 100
Cellular Telemetry
Via RaceCapture App 4G/5G depending on mobile device’s capability (phone) or connected tablet + hotspot
Maximum Sample Rate 10Hz (1/5/10Hz supported)
GPS
GNSS Engine 1/5/10/25Hz native
Accuracy 1.5M CEP
Supported Constellations GPS, GLNOASS, BeiDou, Galileo
Supported Augmentation Systems QZSS, WAAS, EGNOS, MSAS, GAGAN
GPS Antenna External / Magnetic roof mount
Wireless (WiFI)
WiFi 802.11bgn
WiFi Modes Access Point, Infrastructure
Maximum Sample Rate (dashboard link) 50Hz
Wireless (Bluetooth)
Bluetooth (high speed) 2.0/2.1 EDR
Maximum Sample Rate (dashboard link) 50Hz
General Features
Maximum Sample Rate 50Hz
Predictive Lap Timing Built-in
Track Mapping Circuit and point-point
Track maps Unlimited – update from cloud
Sectors per track 20
Analysis Included in the RaceCapture App + podium.live
Export data format Plain CSV (RaceRender and Dashware compatible)
Scripting / Customization
Real-time virtual (math) channels / custom channel mapping Via on-board Lua scripting
Virtual Channels 100
Physical
Dimensions 76.2 x 50 x 22mm (3 x 2 x 0.85in)
Temperature range -40 to 85c
Environmental IP50 rated
Weight 170g (6 oz)
Physical M8 4 Pin + M8 6 pin connectors, provides power + OBDII / CAN connectivity
SMA for external GPS antenna
Power Consumption (max)1.6W
